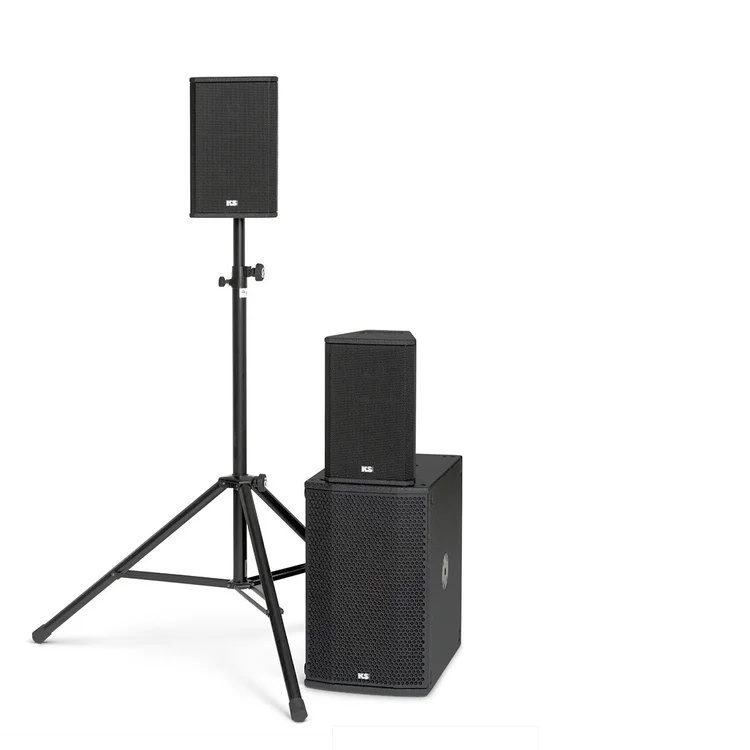

SPIRIT Specifications.
<td “background-color:=”” coral;”=””>SPIRIT
| Specifications | |
|
|
|
| Frequency response | 46 – 20.000Hz ±3dB |
|
|
|
| Max. SPL (1m, free field) | 132dB – complete set |
|
|
|
| Dispersion subwoofer | Omni-directional |
|
|
|
| Nominal dispersion | 90° or 60° |
|
|
|
| Transducers | CPD B2 – Two 10″ ND cone |
| 2x CPD 08 – One 8″ ND cone / One 1.5″ ring diaphragm compression driver | |
|
|
|
| Acoustic Principle | CPD B2 – Bass-reflex and push/pull |
| CPD 08 – Bass-reflex and HF waveguide | |
|
|
|
| Power handling AES RMS/peak | LF: 1300W / 2600W |
| MF: 200W / 400W | |
| HF: 50W / 100W | |
| CPD B2 subwoofer | |
|
|
|
| Amplifier | Integrated: 2 powerstages, 2-channel PWM amplifiers in bridge-mode |
| Power Supply | SMPS (Switched Mode Power Supply) with power factor correction (PFC) |
| DSP | 32-bit, floating point, 192 kHz Sampling frequency |
| Filter Technology | IIR and FIR filters, delay adjustments, contour filters and x-over |
|
|
|
| Power input | powerCON 110-240V 50-60Hz |
| Signal input/output/link | XLR3-F + XLR3-M |
| RJ45 Ethernet 1G T Base for KS AUDIO Remote Control | |
|
|
|
| Dimensions (H x W x D) | 580 x 350 x 580 mm |
| 22.7 x 13.7 x 22.7” | |
|
|
|
| Weight | 33 kg |
| 72.6 lb | |
| CPD 08 full-range | |
|
|
|
| Amplifier | Integrated, 2 powerstages: 1x PWM 1x MOSFET |
| Power Supply | SMPS (Switched Mode Power Supply) with power factor correction (PFC) |
| DSP | 32-bit, floating point, 192 kHz Sampling frequency |
| Filter Technology | IIR and FIR filters, delay adjustments, contour filters |
|
|
|
| Power input | powerCON 110-240V 50-60Hz |
| Signal input | XLR3-F and XLR3-M |
|
|
|
| Dimensions (H x W x D) | 400 x 240 x 280 mm |
| 15.7 x 9.4 x 11.0” | |
|
|
|
| Weight | 10.5 kg |
| 23.1 lb |
